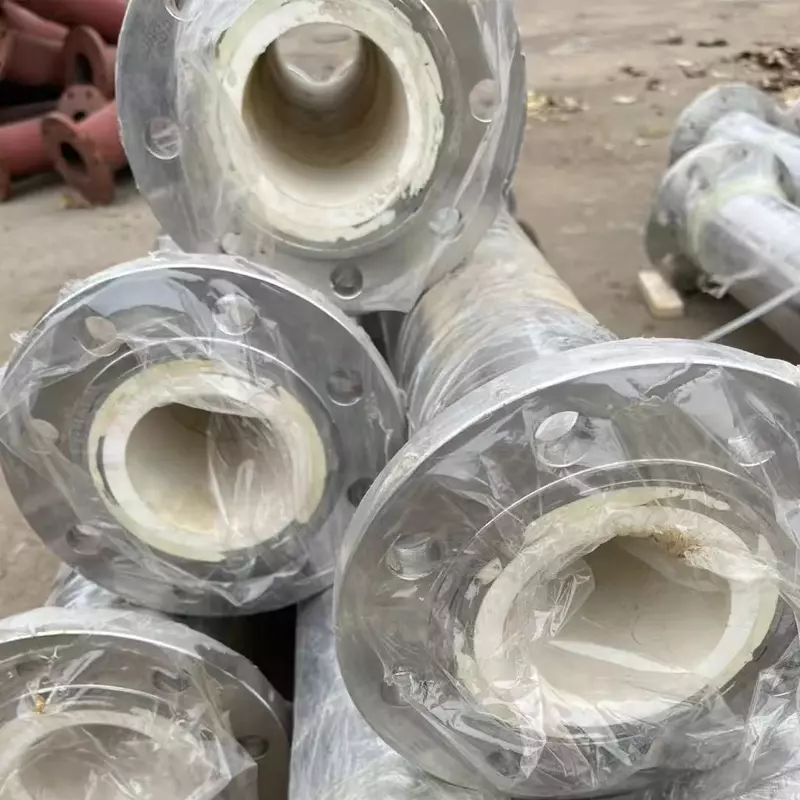

Product Overview: Corrosion & Abrosion Resistant Ceramic-Lined Stainless Steel Conveying Pipe

Our Ceramic-Lined Stainless Steel Conveying Pipes are engineered for excellence, designed to solve the most challenging material handling problems in harsh industrial environments. By seamlessly integrating the superior corrosion resistance of stainless steel with the extreme hardness of alumina ceramics, this pipe delivers unparalleled service life and reliability when transporting highly abrasive and corrosive materials.

Key Features & Benefits

• Ultimate Wear Resistance:

  • Benefit: The inner liner is made of high-purity alumina (Al₂O₃) ceramics, renowned for a hardness second only to diamond. This drastically reduces wear from abrasive particles like fly ash, ores, catalysts, and granules, extending pipe life by 5-10 times compared to conventional steel pipes.

• Superior Corrosion Protection:

  • Benefit: The outer shell is constructed from high-grade stainless steel (e.g., 304, 316, or other grades upon request), providing excellent resistance to a wide range of chemicals, acids, alkalis, and atmospheric corrosion.

• Smooth Material Flow:

  • Benefit: The ceramic tiles are precisely engineered and assembled to create an exceptionally smooth, low-friction surface. This minimizes material buildup, reduces pipe blockages, and lowers energy consumption required for conveying.

• Robust Mechanical Strength:

  • Benefit: The durable stainless steel shell provides the structural integrity to withstand high pressure, mechanical impacts, and vibration, while the ceramic lining protects against internal wear. This robust composite structure ensures reliability in the toughest applications.

• High-Temperature Suitability:

  • Benefit: Alumina ceramics can withstand high temperatures, making this pipe suitable for conveying hot materials such as in cement plants, power generation, and metallurgical processes.

• Long-Term Economy:

  • Benefit: While the initial investment may be higher, the dramatically extended service life, reduced maintenance downtime, and lower replacement frequency result in a significantly lower total cost of ownership.

Technical Specifications

• Pipe Shell: Stainless Steel 304, 316, 316L, or as customized.

• Lining Material: ≥ 92% Alumina Ceramic (Al₂O₃).

• Ceramic Hardness: ≥ HRA 85 (Rockwell Hardness).

• Available Sizes: Range from 2 inches to 24 inches in diameter, with custom sizes available.

• Connection Methods: Flanged, welded, or quick-disconnect couplings.

• Application Temperature: Standard range from -50°C to 400°C (-58°F to 752°F). Special designs available for higher temperatures.

Ideal Applications

This pipe is the optimal solution for industries where both abrasion and corrosion are primary concerns:

• Power Generation: Fly ash conveying, bottom ash handling, FGD systems.

• Mining & Mineral Processing: Tailings, mineral concentrates, abrasive slurries.

• Steel & Cement Plants: Raw meal, clinker, cement powder, dust collection.

• Chemical Processing: Abrasive and corrosive catalysts, powders, and granules.

• Pneumatic & Hydraulic Conveying: Long-distance conveying systems in various industries.

Why Choose Our Product?

We specialize in manufacturing high-performance industrial pipes tailored to withstand the most demanding conditions. Our ceramic-lined stainless steel pipes are produced with precision, undergoing rigorous quality control to ensure every unit meets the highest standards for performance and durability.

Ready to eliminate your pipe wear problems? Contact our engineering team today to discuss your specific application and find the perfect solution for your material handling needs.
